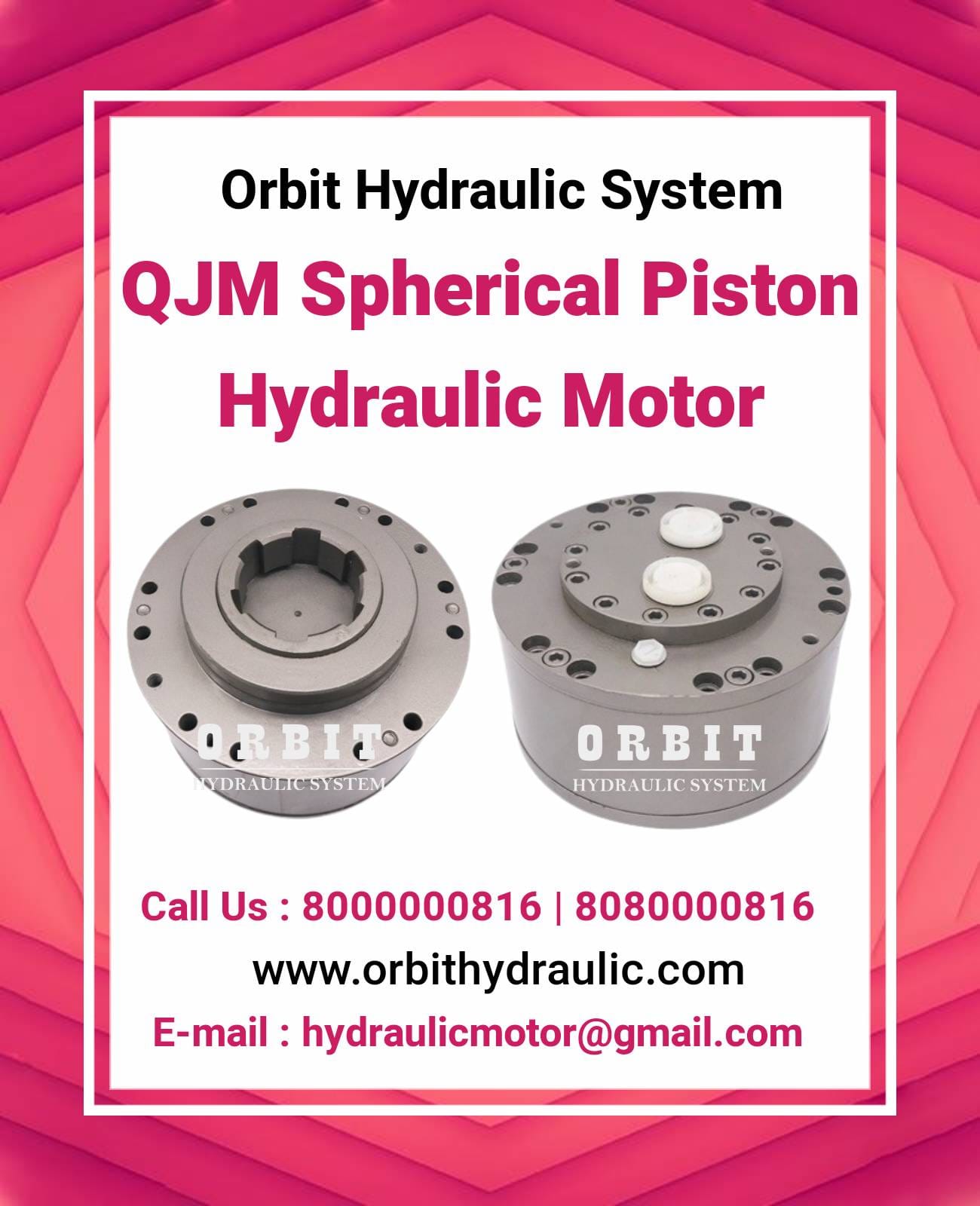

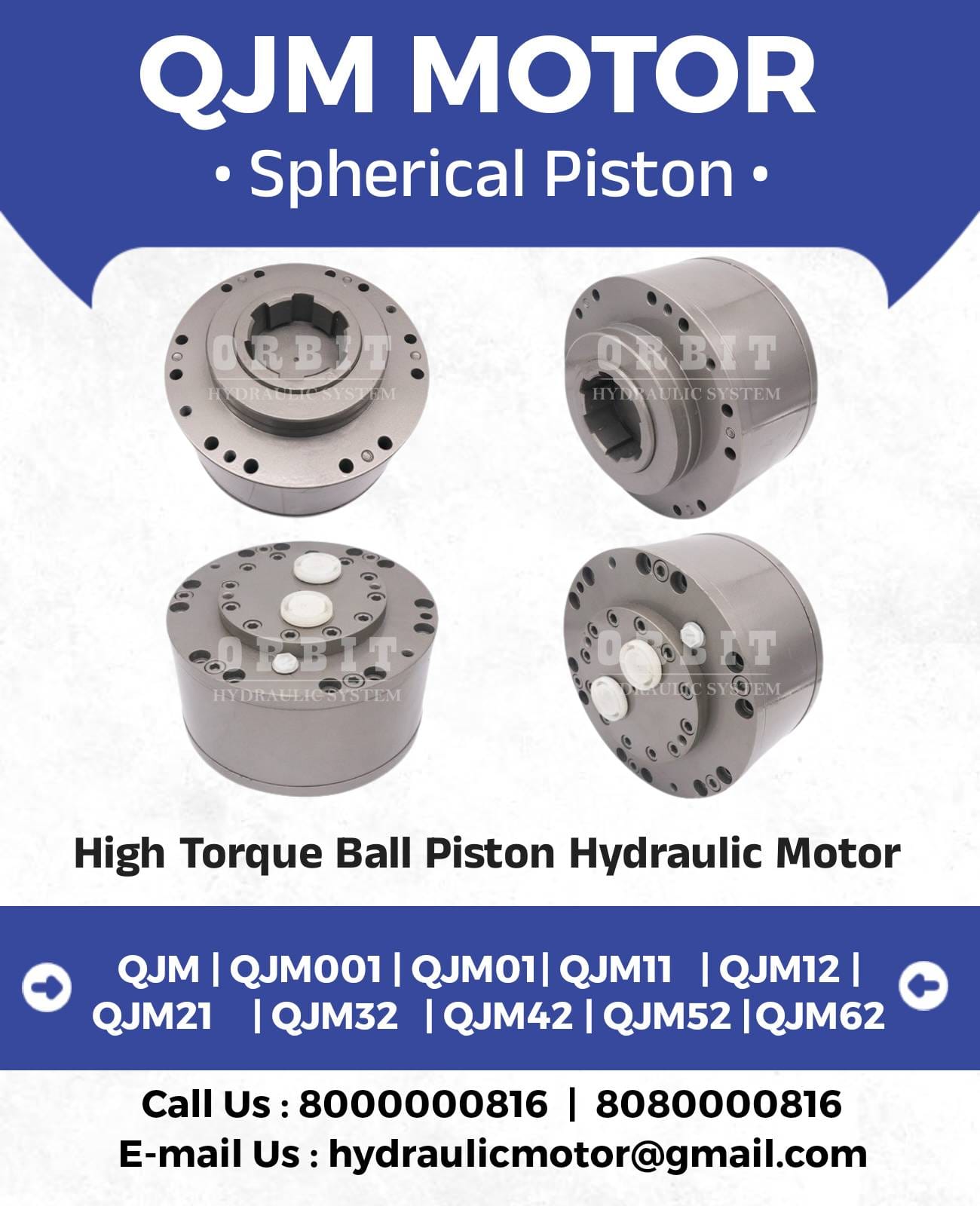

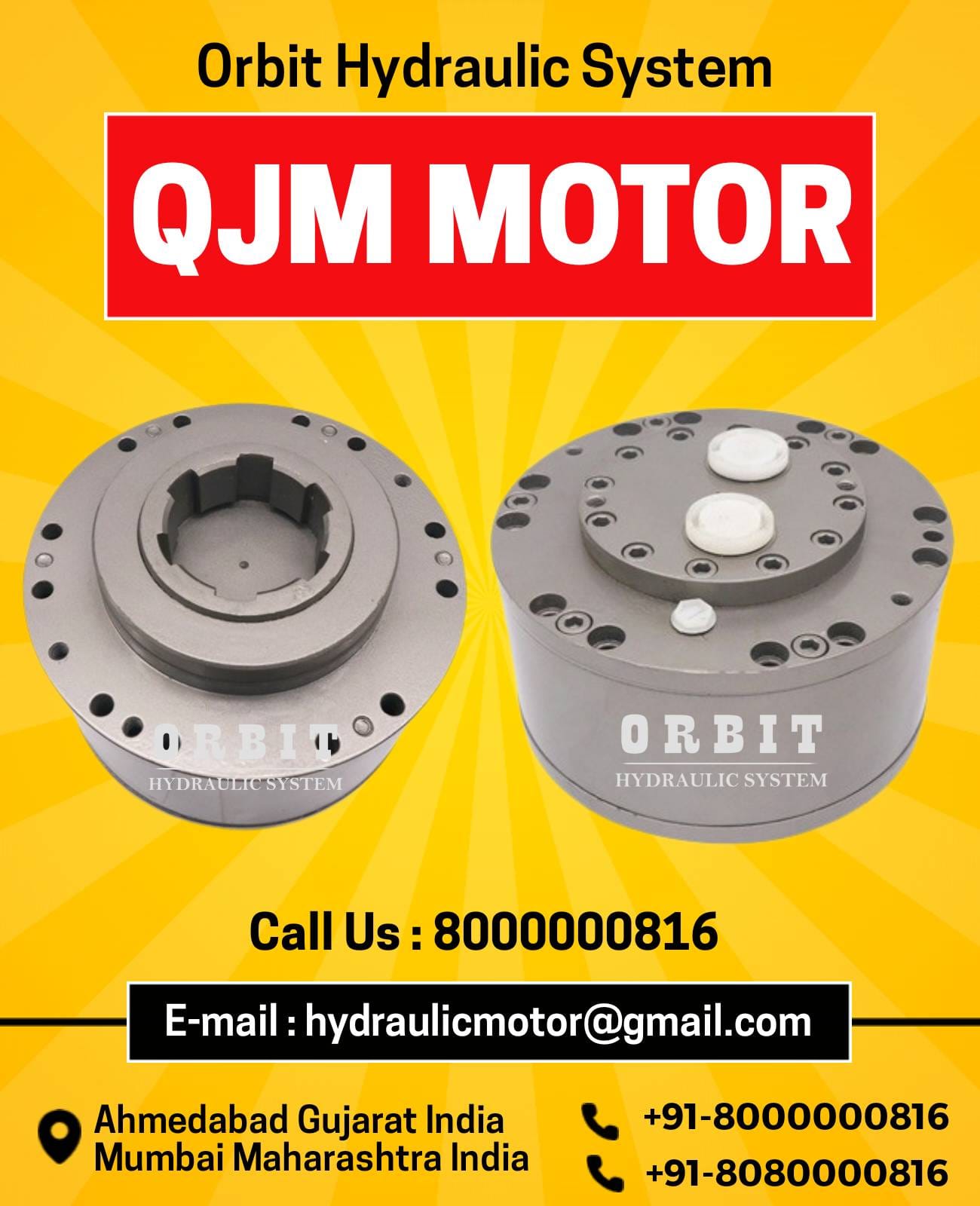

QJM Sphere Piston Hydraulic Motor
QJM Hydraulic Motor it is Spherical Piston ( Ball Piston ) type Hydraulic Motor that can be used to establish a Hydraulic Actuator with various oil flow, valves and hydraulic parts can adapt itself to all kinds of mechanical conditions by reason of some contacts taken to its project.
QJM Sphere Piston Hydraulic Motor
QJM Sphere Piston Hydraulic Motor
We have various models and sizes in QJM series Motors from 83 C.C to 10150 C.C, with Single, dual and triple speed and with or without brake and with special mounting.
1QJM Hydraulic Motor :
FIXED DISPLACEMENT1QJM001, 1QJM002, 1QJM01, 1QJM02, 1QJM11, 1QJM21, 1QJM32, 1QJM42, 1QJM52, 1QJM62
2QJM Hydraulic Motor
VARIABLE SPEED DUAL DISPLACEMENT2QJM001, 2QJM002, 2QJM01, 2QJM02, 2QJM11, 2QJM21, 2QJM32, 2QJM42, 2QJM52, 2QJM62
QJM Sphere Piston Hydraulic Motor Manufacturer
| Series | QJM001 | QJM01 | QJM11 | QJM12 | QJM21 | QJM32 | QJM42 | QJM52 | QJM62 | |
| Flow rate L/min | 50 | 63 | 80 | 80 | 100 | 160 | 250 | 320 | 400 | |
| Outer diameter(mm) | Ø140 | Ø180 | Ø240 | Ø240 | Ø300 | Ø320 | Ø350 | Ø420 | Ø485 | |
Feature
1. Because the rolling body of this motor is replaced by a steel ball rather than two or more rollers and beams commonly used in inner curve Hydraulic Motors,
it is simple in structure, reliable in performance and greatly reduced in volume or weight.
2. A small kinematic pair inertia and a hard steel ball make this motor continuously work during the rotation at higher speed and under stronger impact load.
3. It has higher mechanical and volumetric efficiency for its small friction pair, oil feed shaft balanced with roller, piston pair capable
of static pressure balance & good lubrication and coated high pressure sealing oil on soft plastic mat.
4. As the oil feed shaft and stator are in rigid connection, the oil pipeline of this model can be connected with steel pipe.
Quisque velit nisi, Designer
Quisque velit nisi, Designer
QJM Sphere Piston Hydraulic Motor

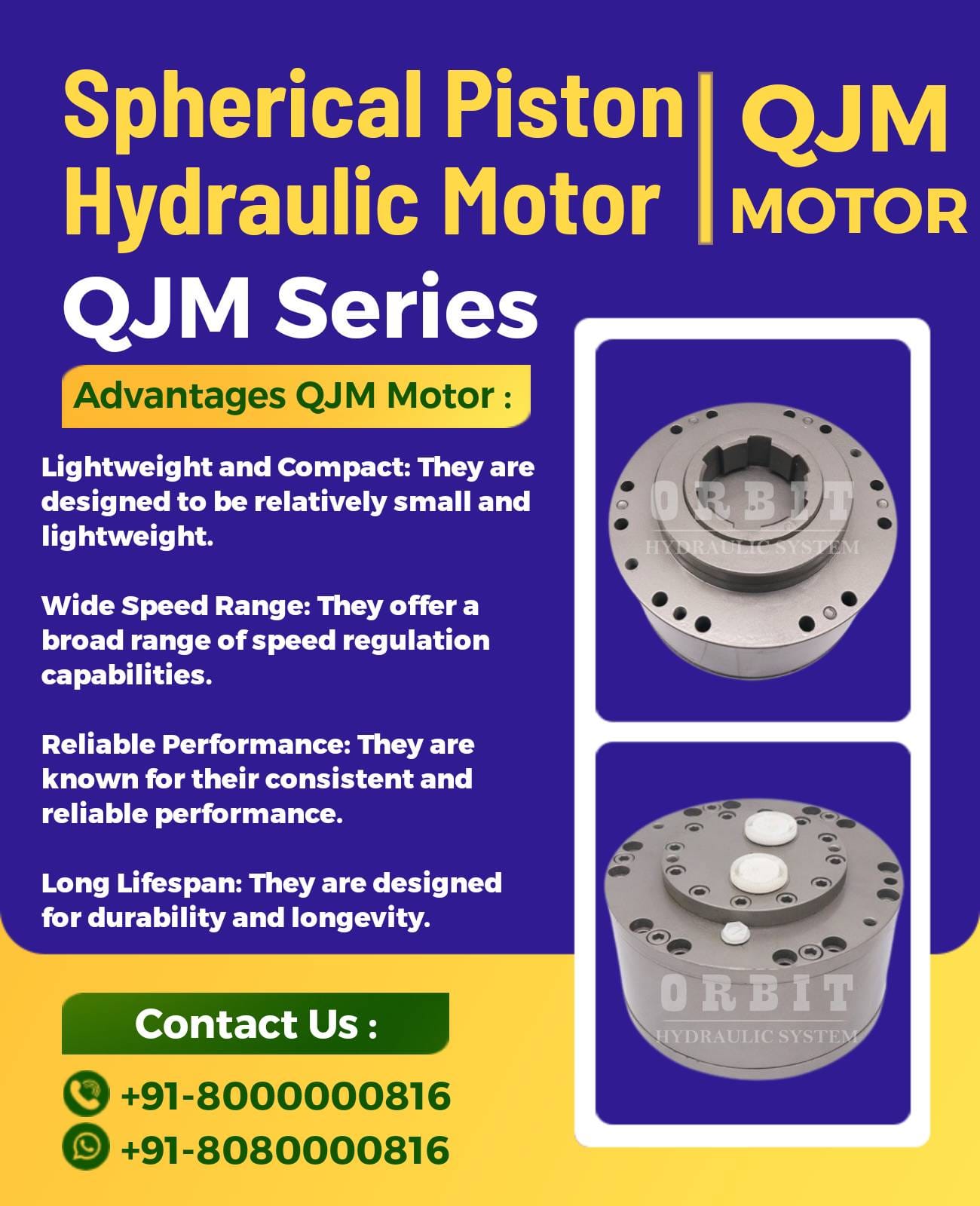

| Light Weight | Compact Size |
| Wide range of speed control | Consistency in performance |
| Long lift | High Torque Output |
| High Efficiency | Smooth Operation |
| Low Noise Level | Break Option Available |
QJM Sphere Piston Hydraulic Motor
QJM sphere piston hydraulic motors offer low noise, high starting torque, and good low-speed stability. They are also known for their high volumetric efficiency, mechanical efficiency, and ability to operate in reverse rotation. QJM motors can handle radial and axial loads and have a high power-to-weight ratio. They are available in various sizes and configurations, including single, dual, and triple speed options.
For More Details Contact Us : 8000000816
